Integrating WhatsApp Flows with Hulul Flow Builder – Hulul Help Center

WhatsApp Flows allow you to add pre-built, interactive elements to your Hulul conversations, all within the familiar WhatsApp experience.

WhatsApp Flows (2).png

Prerequisites

Before you begin, ensure you have the following:

Verified WhatsApp Business Account: Ensure you have a verified account with "Business-initiated messages" enabled.
WhatsApp Business Policies: Familiarize yourself with WhatsApp's guidelines to ensure compliance.
Published WhatsApp Flows: Create and publish desired flows in WhatsApp Business Manager.
Hulul Platform Access: Have an account and access to the Hulul platform.
Connected WhatsApp Channel: Connect your WhatsApp channel within Hulul.

Key Functionalities

Selection: Choose a published WhatsApp flow to integrate into your Hulul interaction.
Mapping: Map user responses from the WhatsApp flow to relevant attributes within Hulul.
Review: Access and review customer responses captured through completed flows in the Hulul inbox.

Step-by-Step Guide

Step 1: Initiate Flow Creation in Hulul

Open the Hulul platform and navigate to the Flow Builder.
Start a new flow or select an existing one to edit.

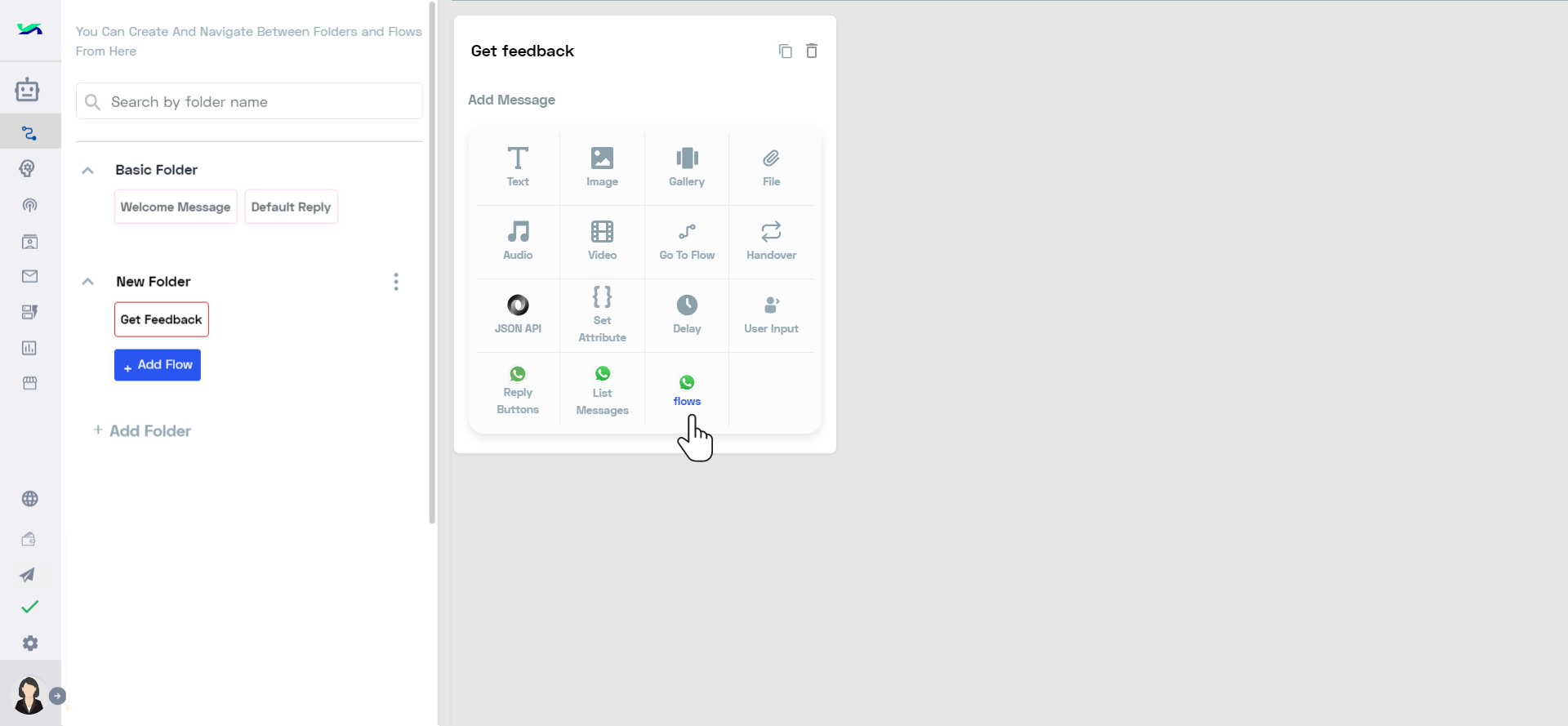

Click on "WhatsApp Flows" from the message types available in the flow.

click on flows (3).png

Step 2: Customize Flow Elements

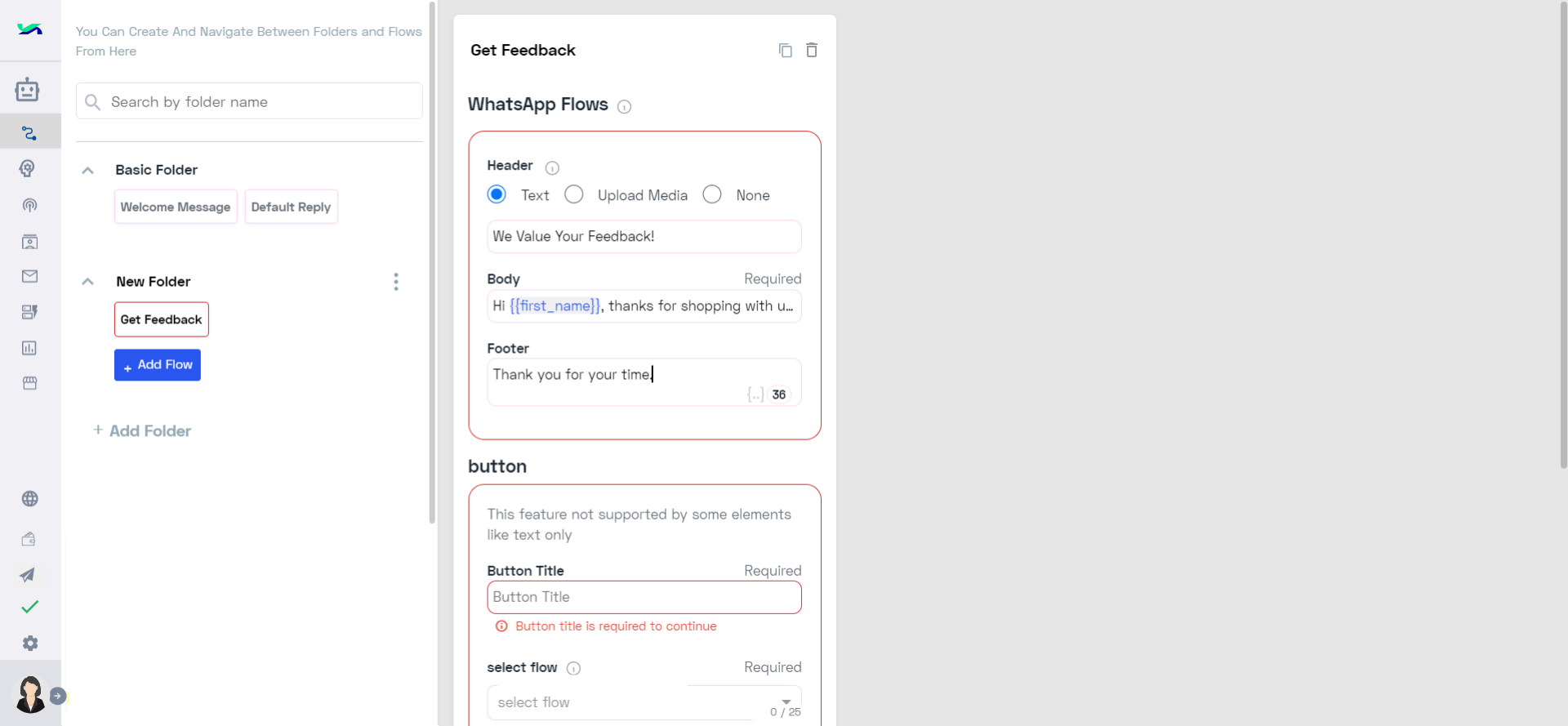

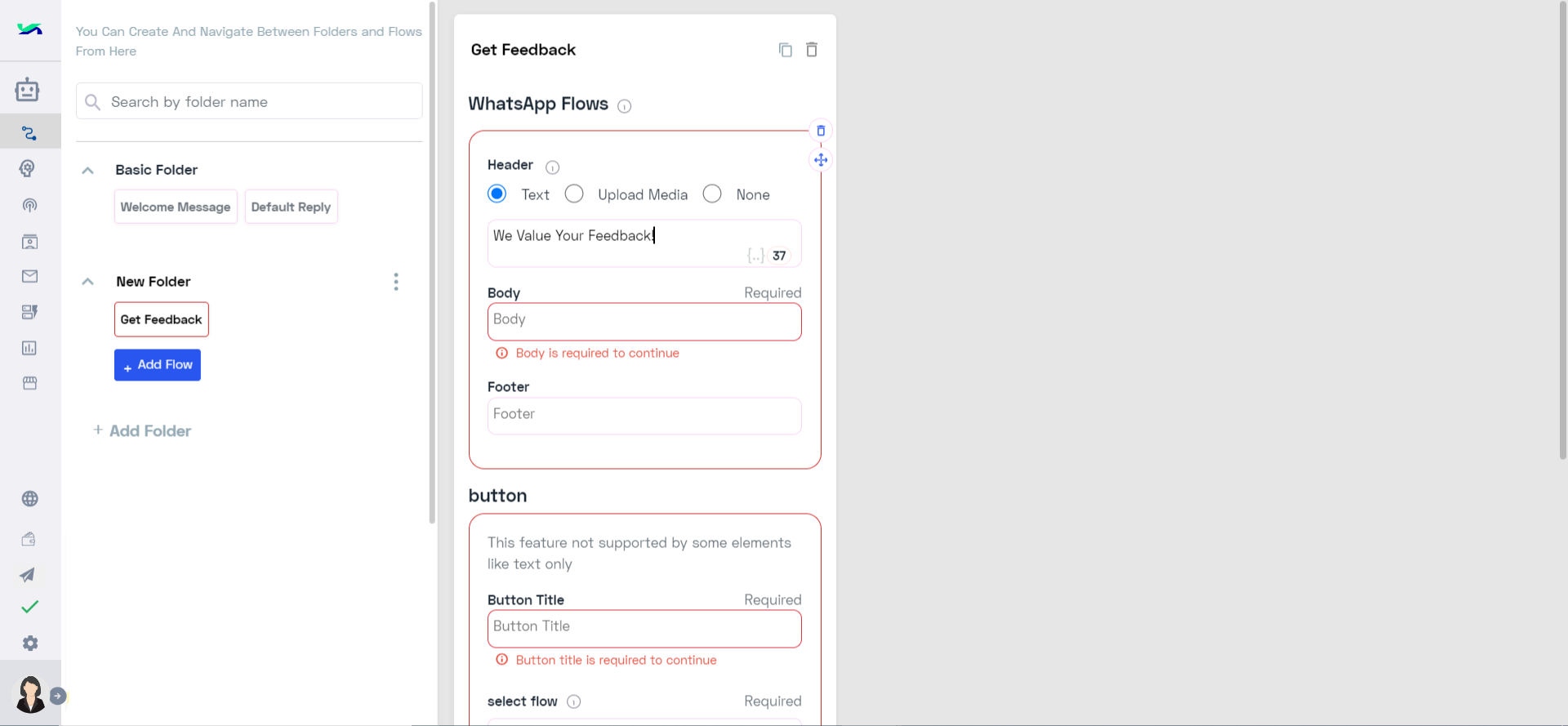

Header

You can add a header to the question, which can display up to 60 characters.

Text: 60 characters maximum
Image: 5 MB maximum size
Video: 16 MB maximum size
PDF: 100 MB maximum size
Optional: You can choose "None" to remove the header text area.

header (4).png

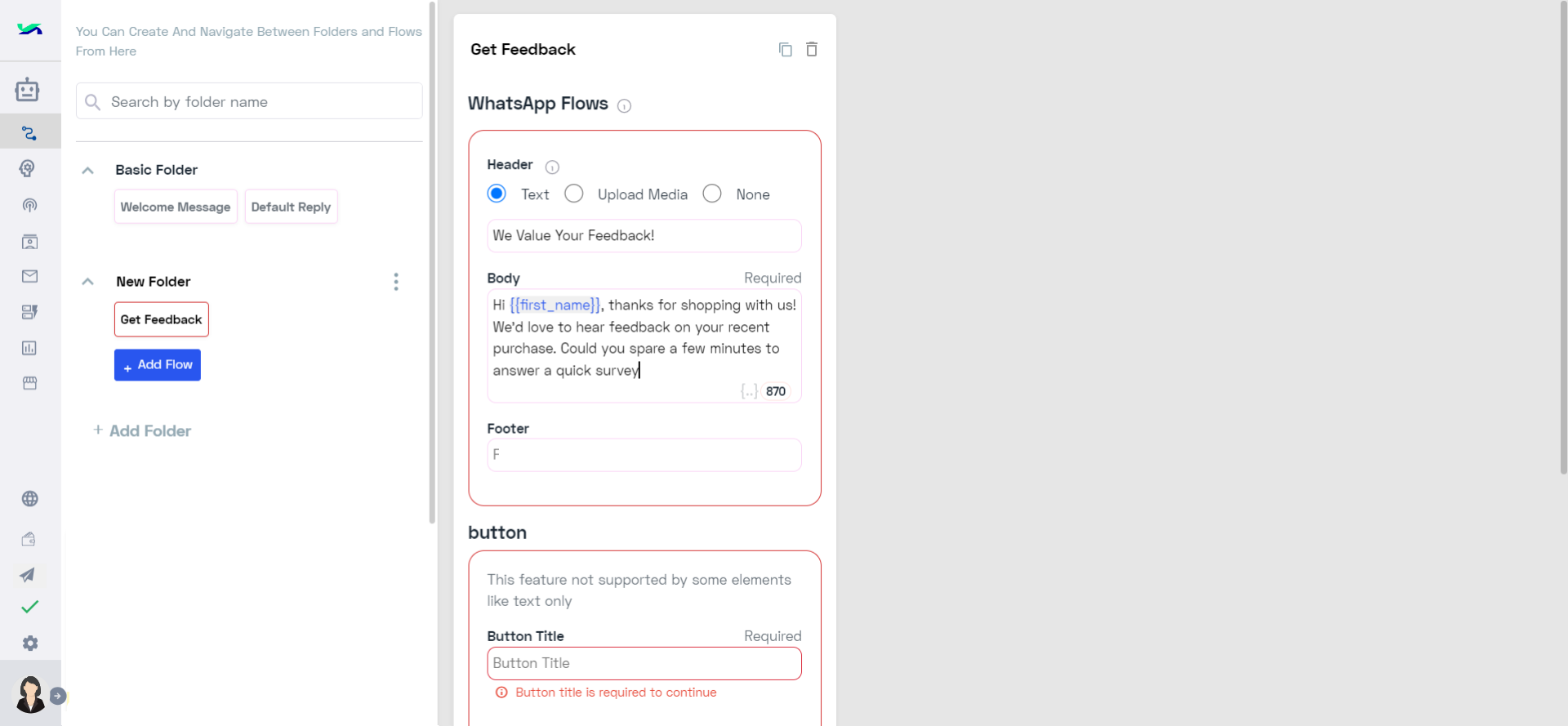

Body

Make sure to add text to guide your users through the options.

1024 characters maximum

body (3).png

Footer (optional)

You can add additional information at the bottom of the flow with up to 60 characters.

footer (3).png

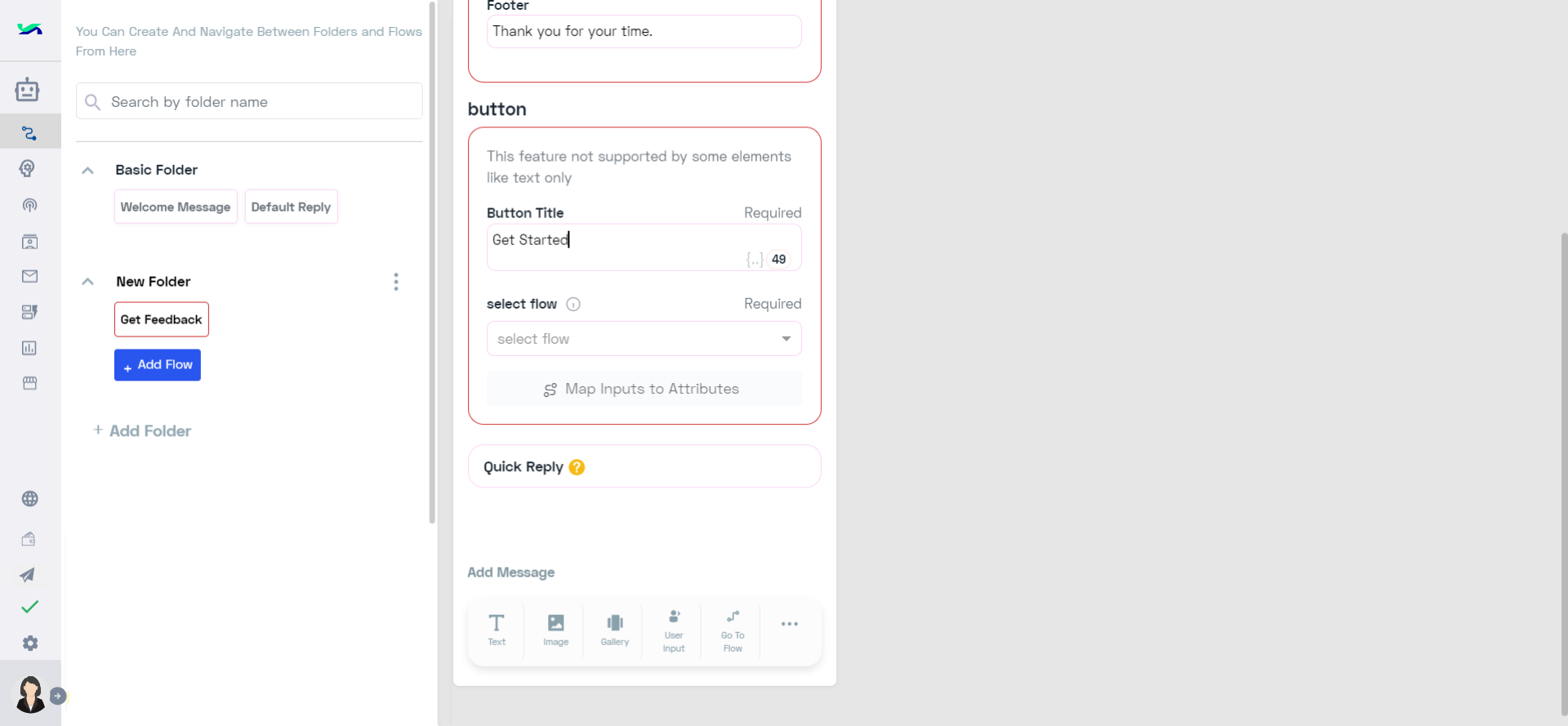

Button Title

Add the text for the button you will offer as a quick reply, keeping it within the 25 characters limit.

Button title (1).png

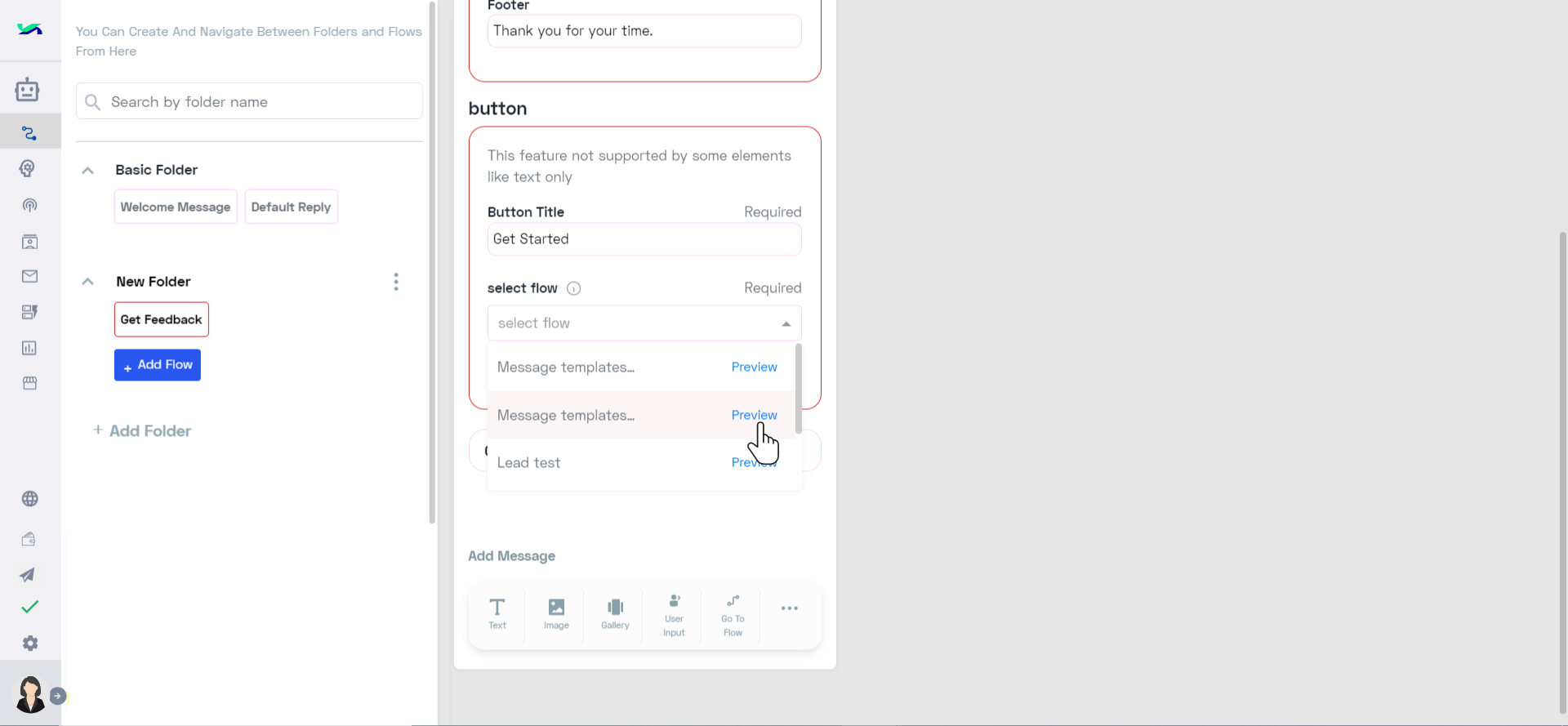

Step 3: Previewing

You'll see a list of flows you've already created (created and published beforehand in the WhatsApp Business Manager).

Each listed flow offers a preview link or option to view its details. This allows you to understand the flow's structure before selecting it.

Preview (1).png

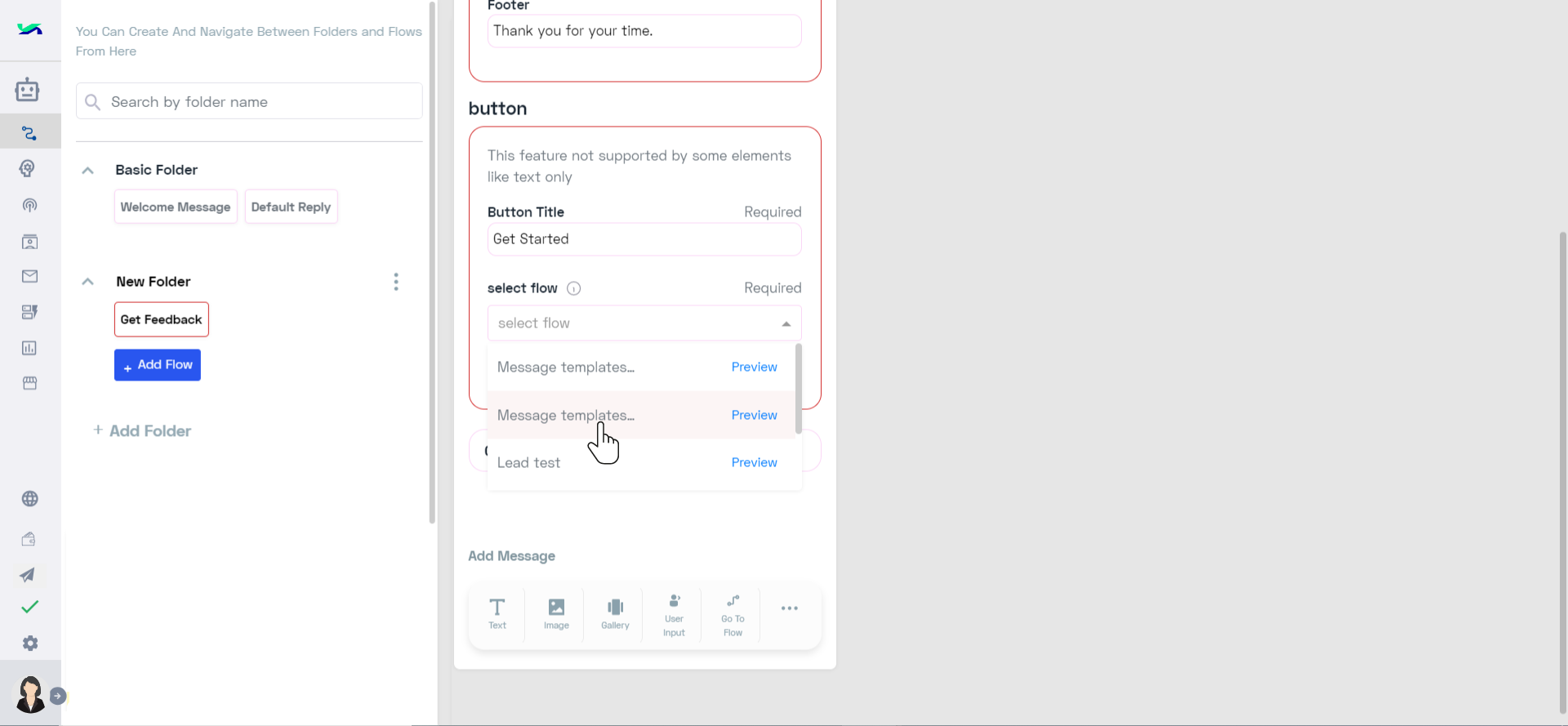

Step 4: Select a Published Flow

Once you've chosen the appropriate flow, select it to integrate it into your Monty journey.

Select flow (3).png

Notes:

If your WhatsApp channel isn't connected, you'll see a prompt to connect it.
If you don't have any published flows, please refer to this help document that explains how to create them in WhatsApp Business Manager.
Only flows with a "good health" status (not throttled or blocked) will be selectable.

Step 5: Mapping User Responses

After selecting a flow, the system will automatically retrieve the expected user responses (payload answers) from the chosen flow.

A mapping interface will be presented, allowing you to map each expected response to a corresponding attribute within your Hulul platform.

Mapping Steps:

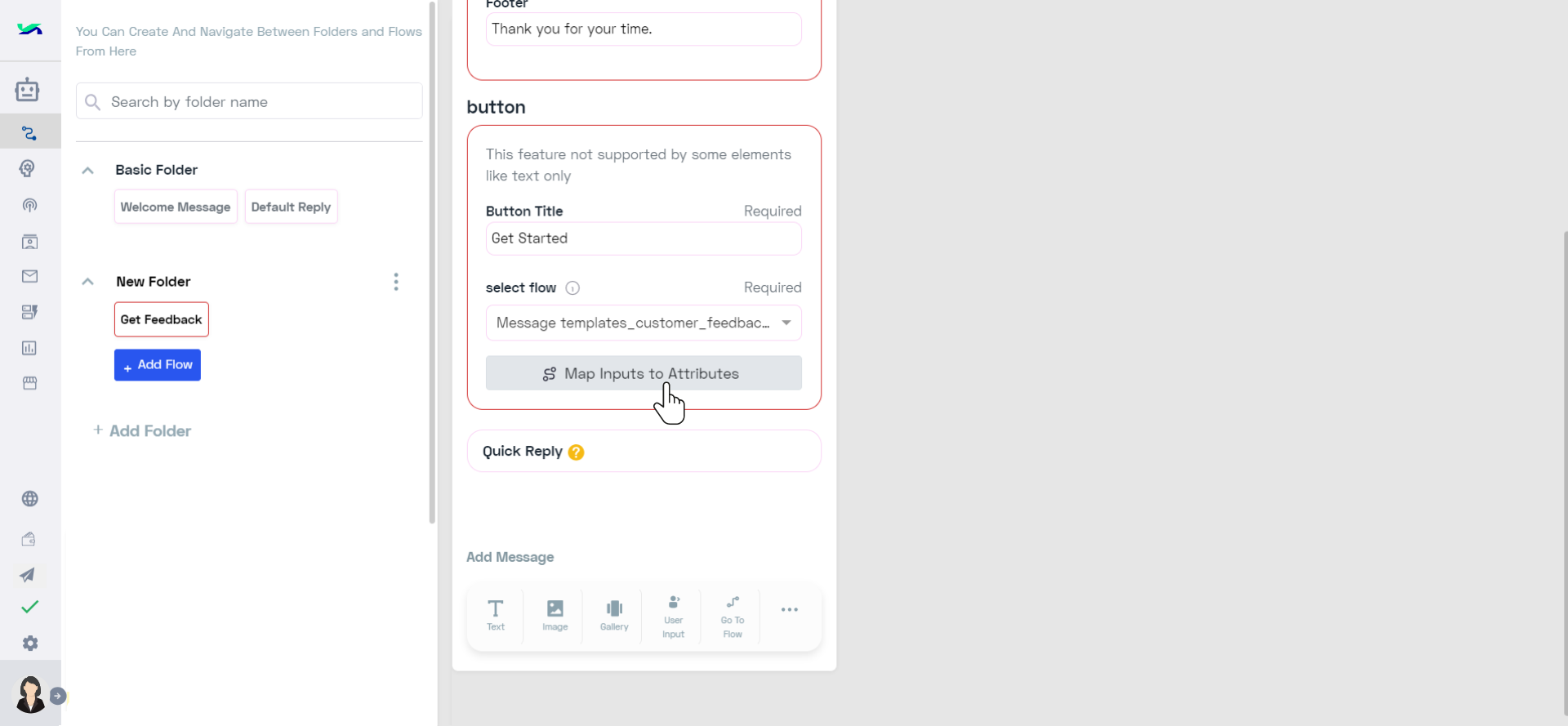

Click on “Map Inputs to Attributes” after selecting your flow.

Mapping (1).png

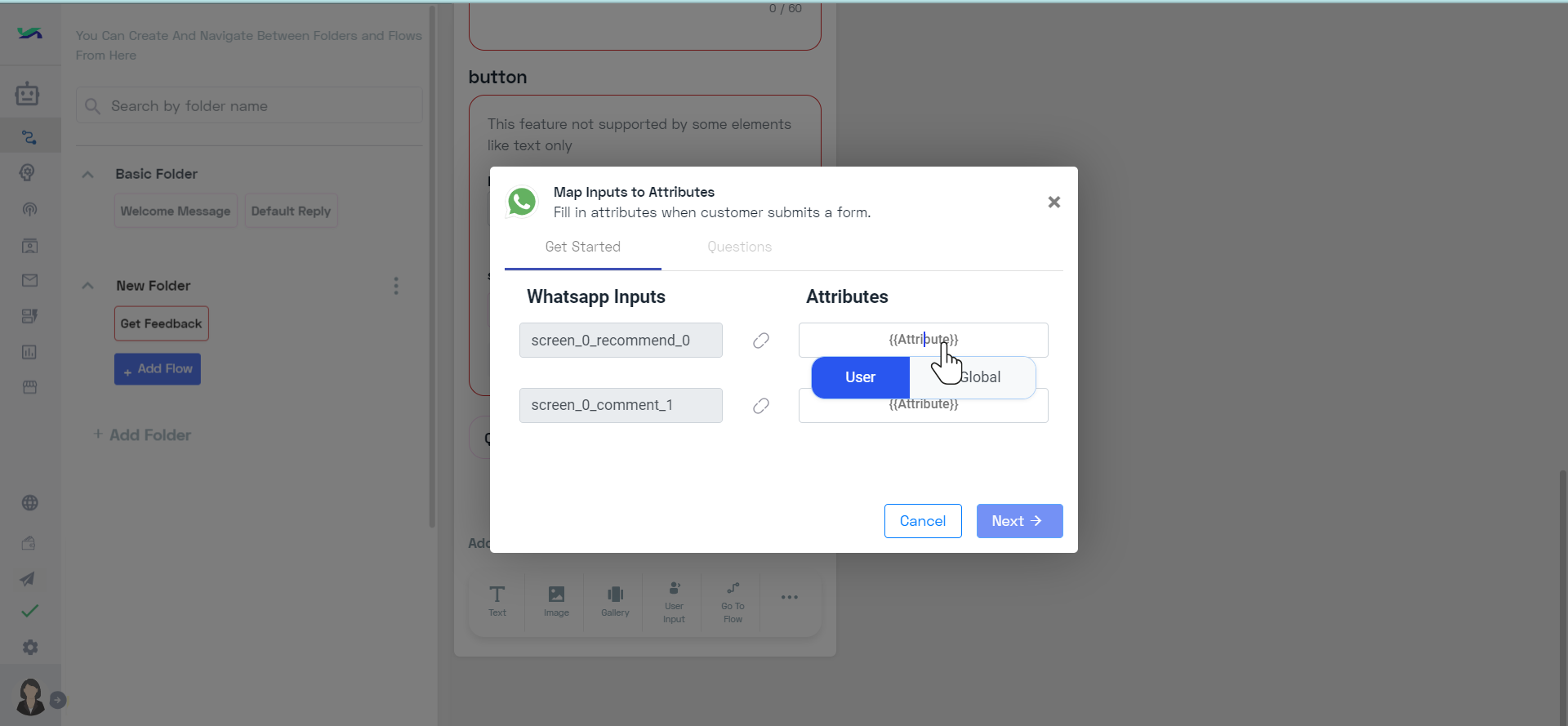

Click the “{{Attribute}}” field.

Select the “{{Attribute}}” field. (2).png

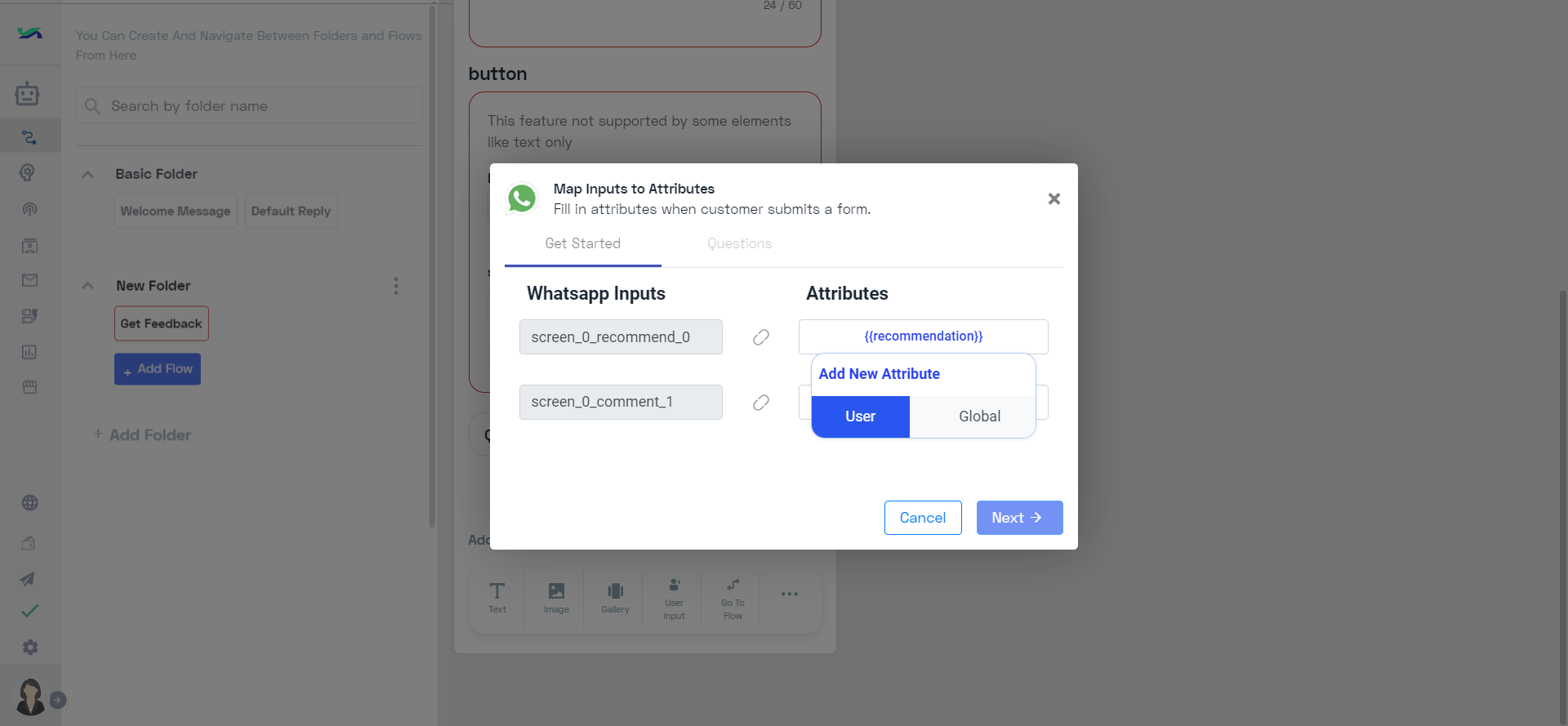

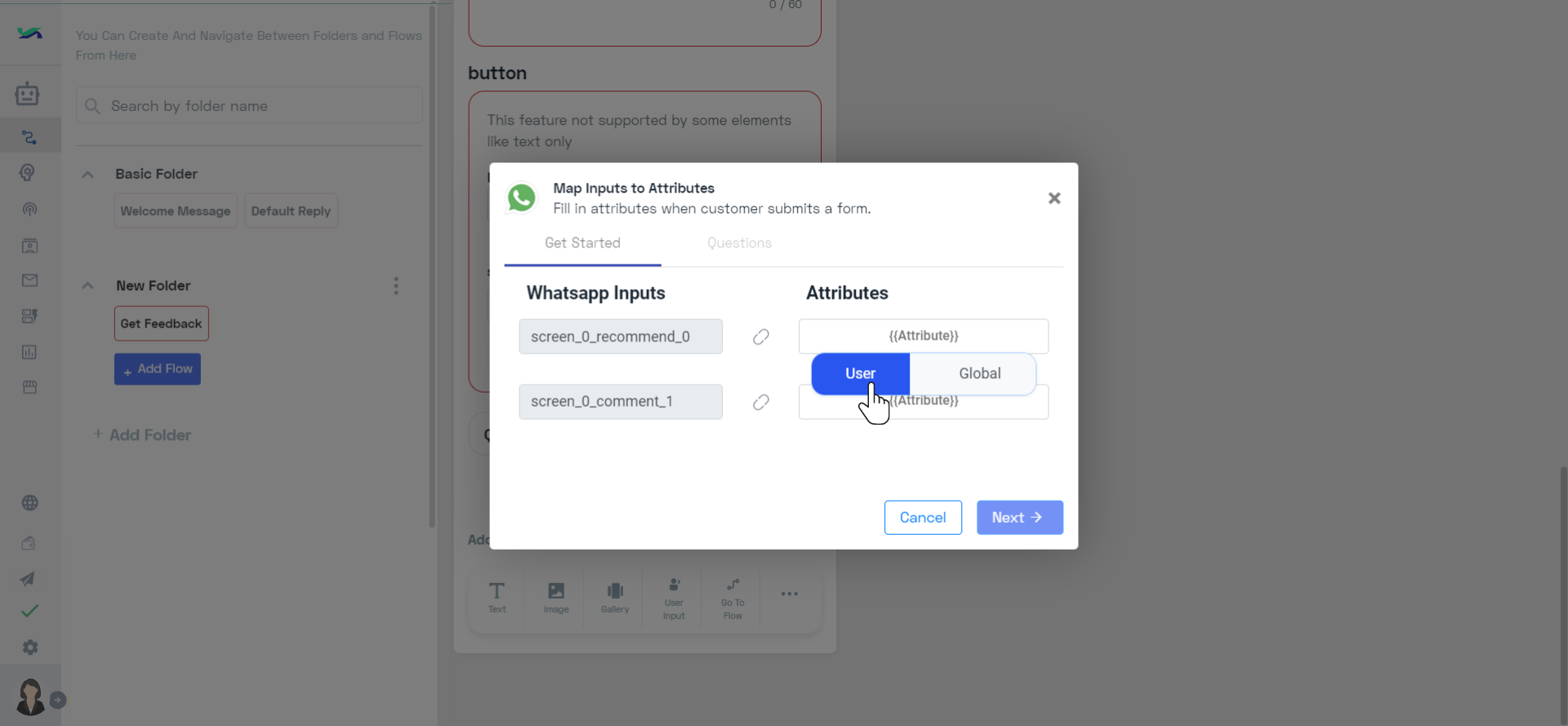

Select “User Attributes”

Select “User Attributes” (1).png

Type the desired “Attribute Name” for mapping.

Type the desired “Attribute Name” for mapping. (1).png

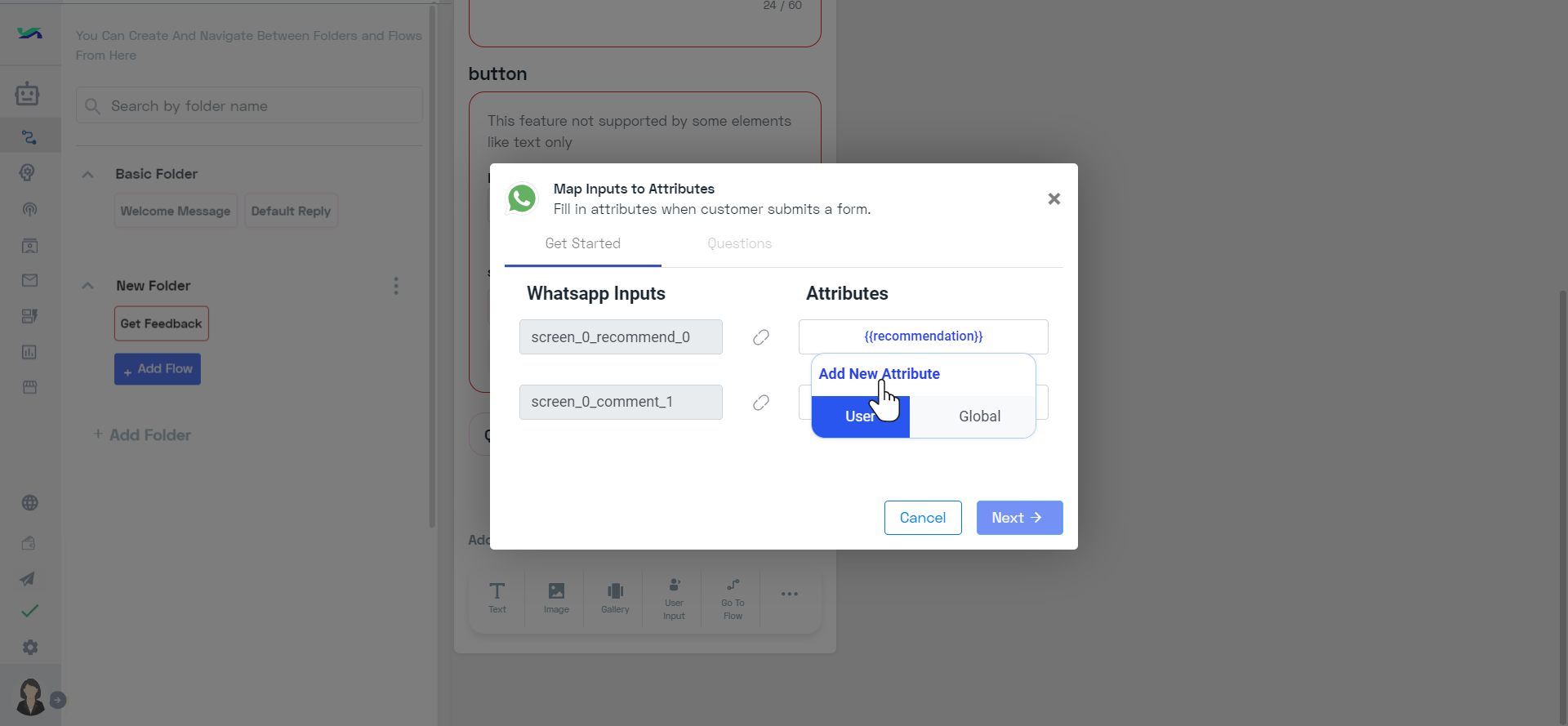

Click the “+Add New Attribute” button.

Click the “+Add New Attribute” button (2).png

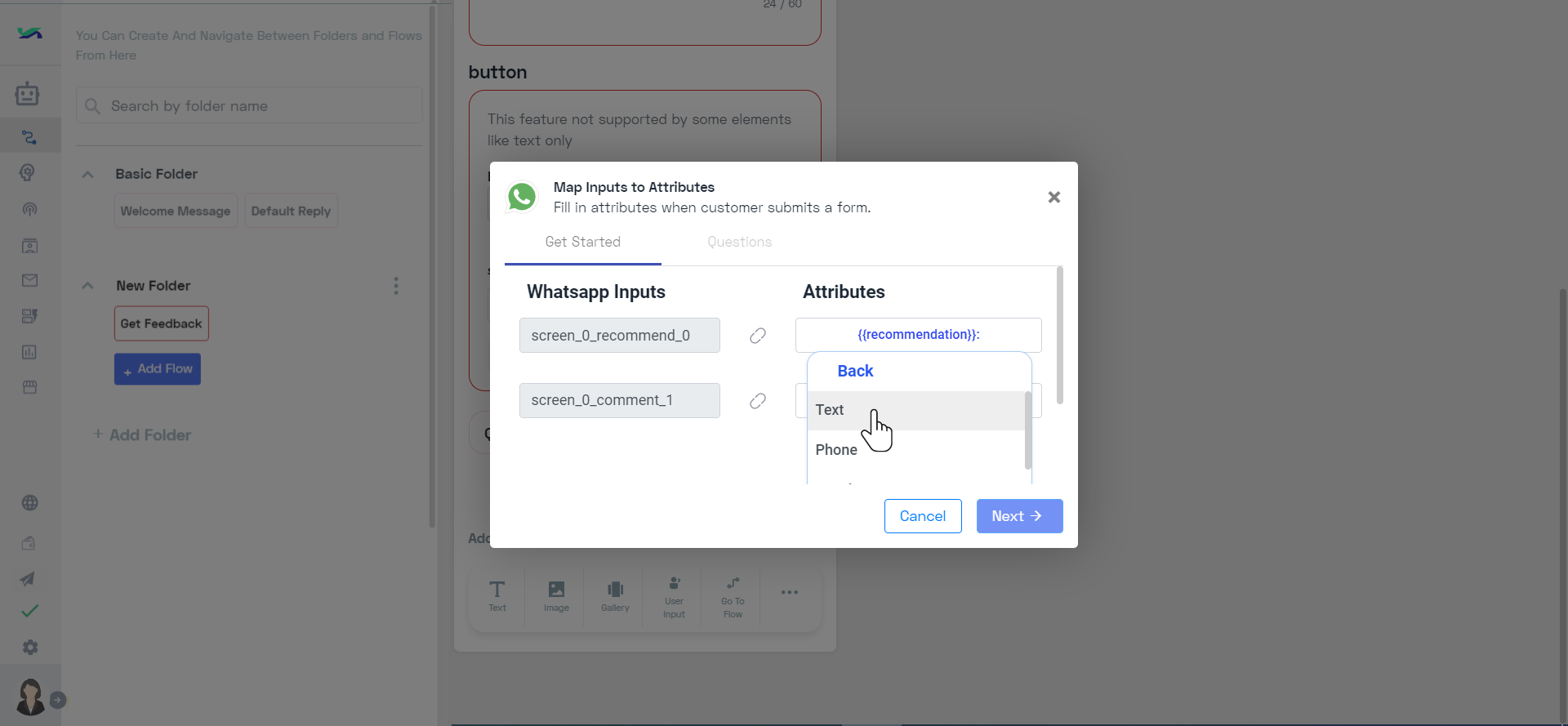

Choose the attribute type, such as "Text" or "Date", based on the documentation for supported attribute types.

Choose the attribute type, such as Text (1).png

Example Scenario

Screen 1: Get Started

Screen 2: Questions

Question 1: Would you recommend us to a friend?

Attribute: recommendation
Type: Single choice (Text)

Question 2: How could we do better?

Attribute: improvementSuggestions
Type: Text (Text)

Question 3: How satisfied were you with the overall shopping experience?

Attribute: overallSatisfaction
Type: Single choice (Text)

Question 4: How easy was it to find the product you were looking for?

Attribute: productFindEase
Type: Multiple choice (Text)

Question 5: Is there anything we can do to improve your experience in the future?

Attribute: futureImprovements
Type: Text (Text)

Refer to the documentation for supported attribute types (e.g., Text, Date) to ensure proper mapping.

Note: You cannot proceed without mapping all required attributes.

Step 6: Integrating the Flow

Once the mapping is complete, the selected WhatsApp flow becomes part of your Hulul interaction.

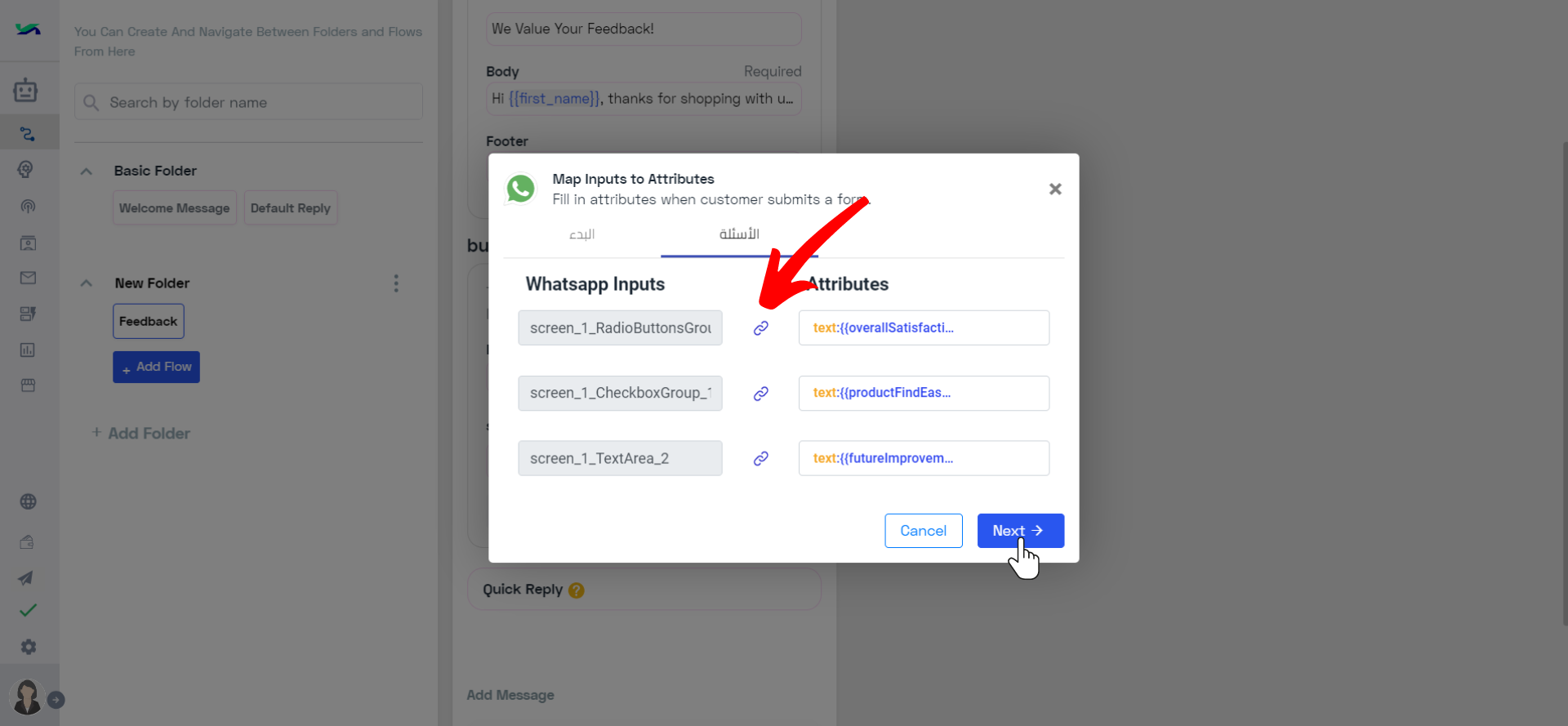

_mapping is complete.png

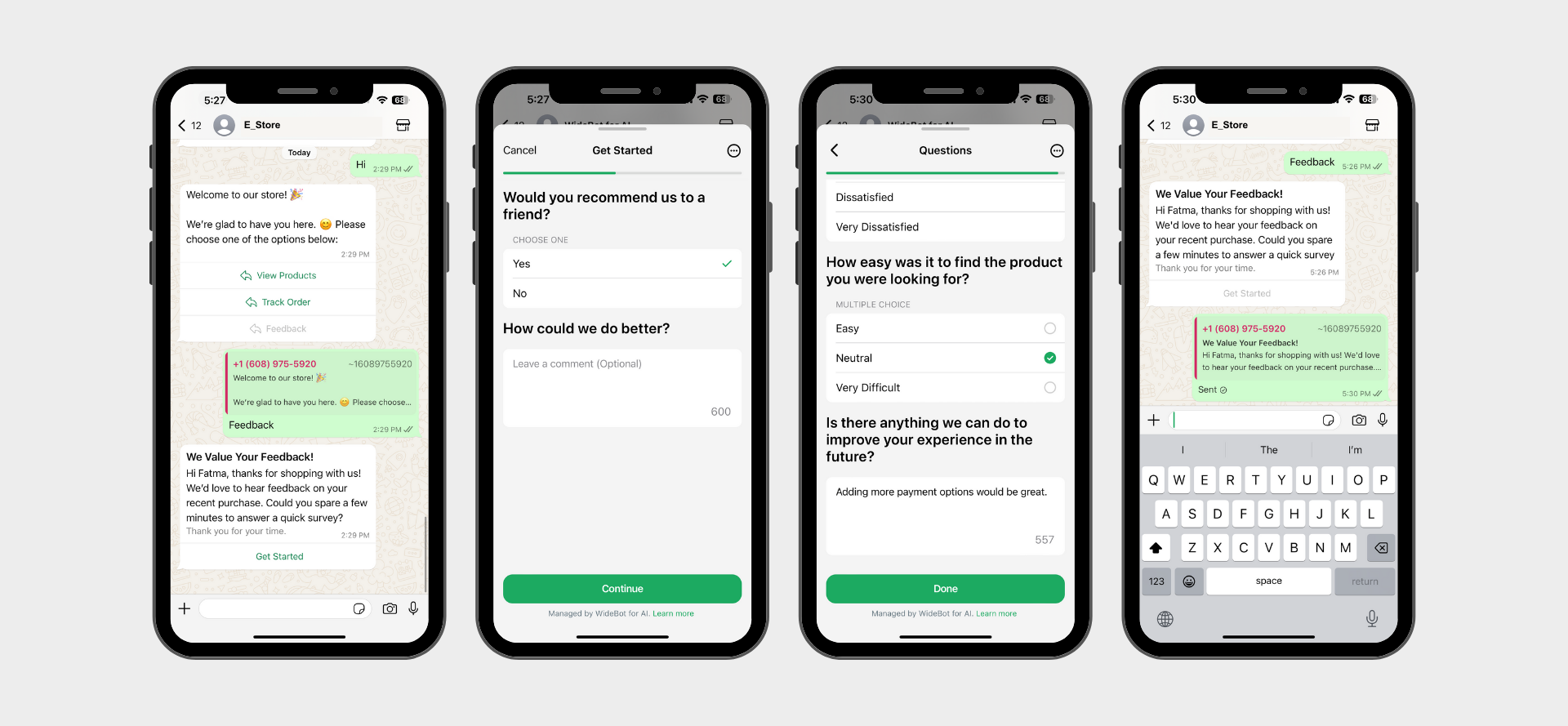

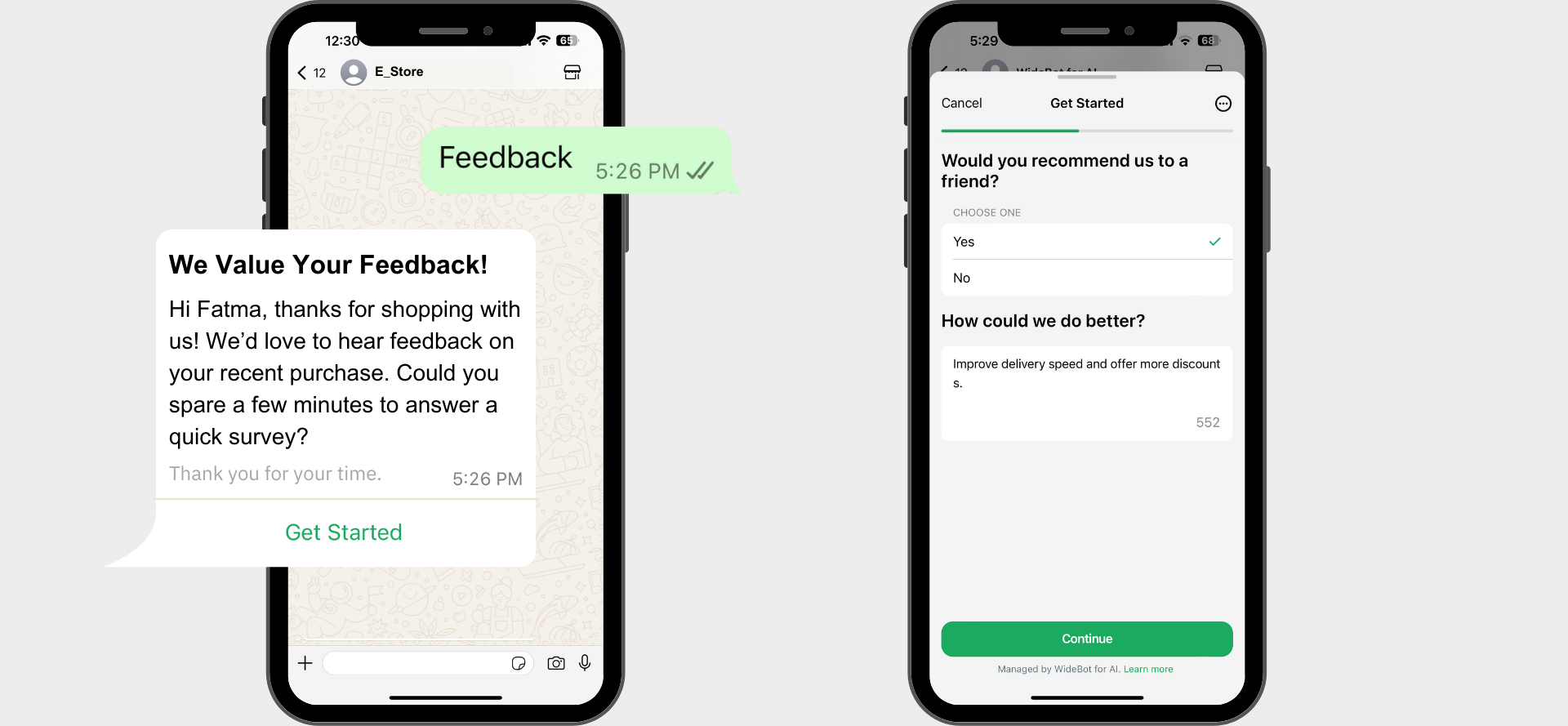

Users will be directed to the chosen WhatsApp flow, where they’ll interact with pre-defined screens and provide responses in WhatsApp.

_Integrating the Flow (2).png

Step 7: Reviewing Responses

Each completed flow will appear as a separate entry in the Hulul inbox with the following information:

Flow name
Completion date
A "View answers" button to access a pop-up with detailed flow responses.

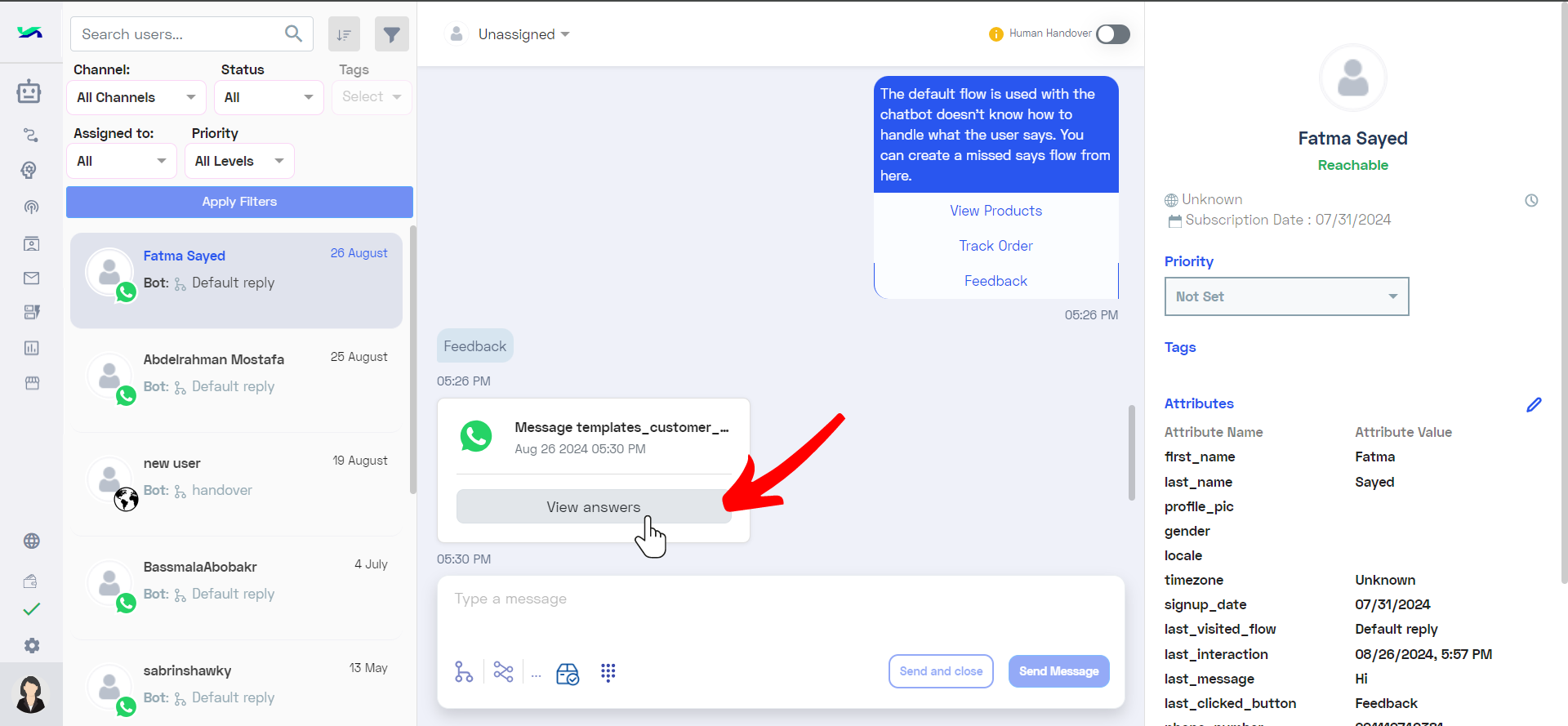

Inbox Preview.png

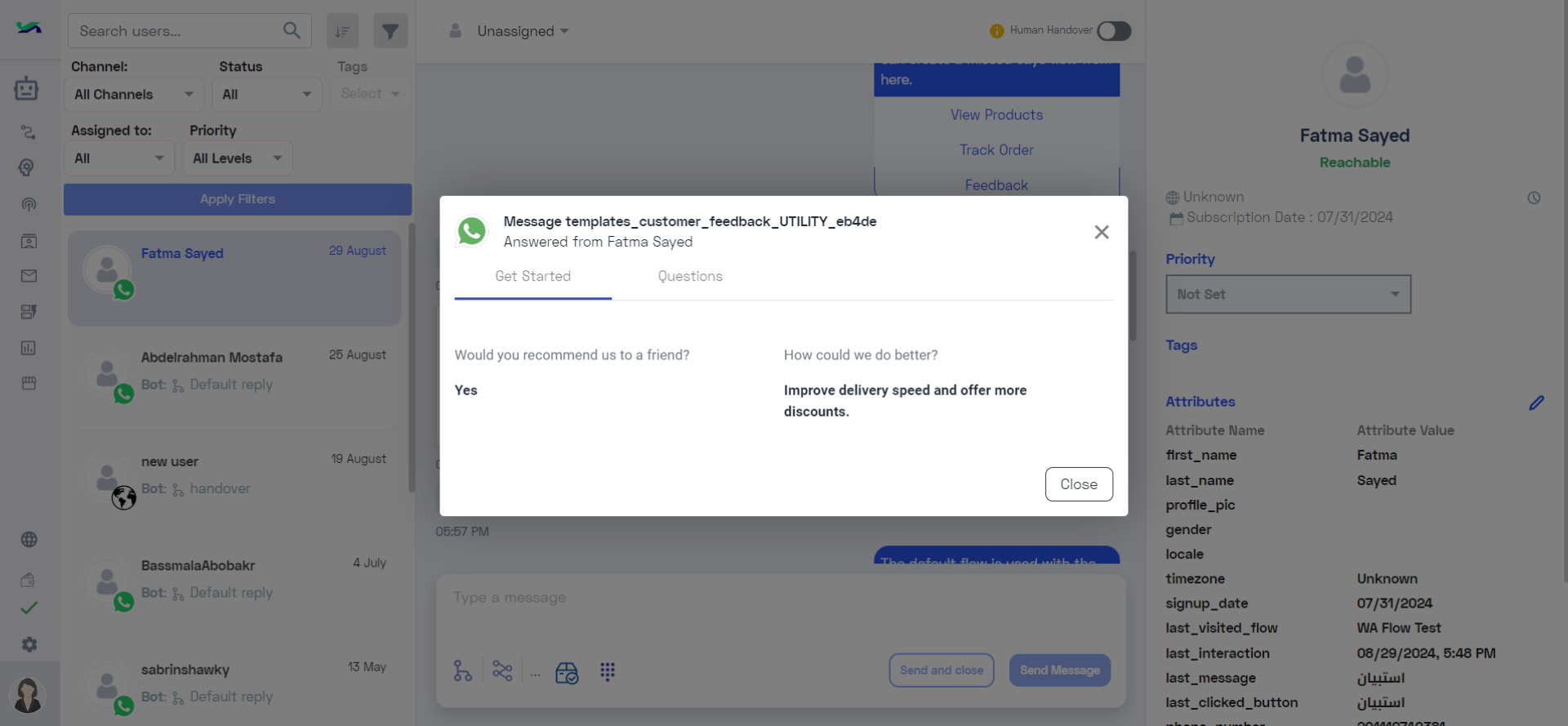

Response Details (1).png

Tips for Successful Flow Integration

Ensure Accurate Mapping: Make sure user responses are correctly linked to Hulul attributes.
Monitor Flow Health: Regularly check your WhatsApp flow status in Business Manager and update as needed for a smooth experience.
